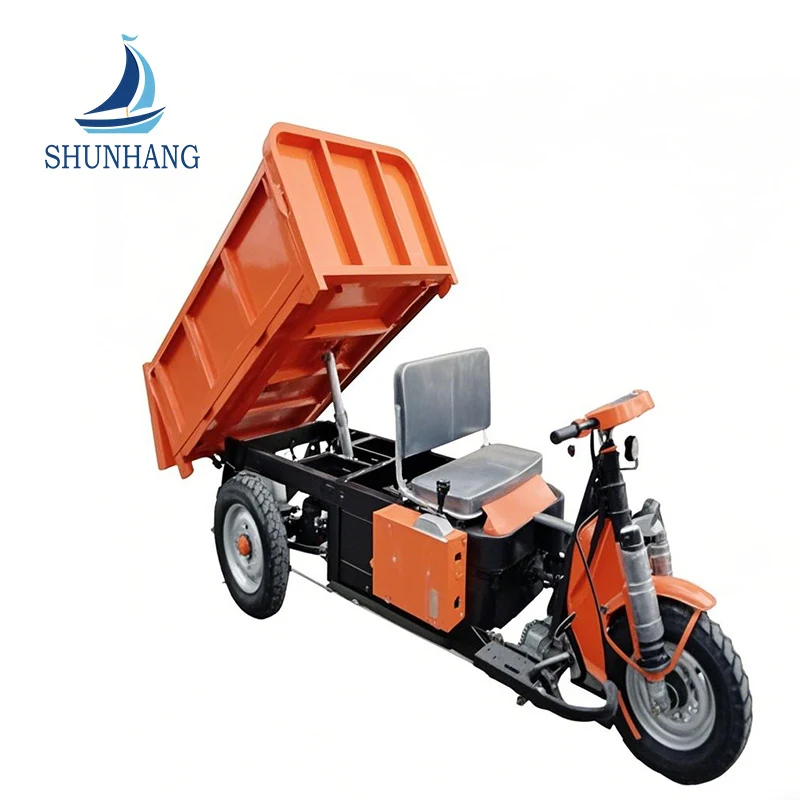

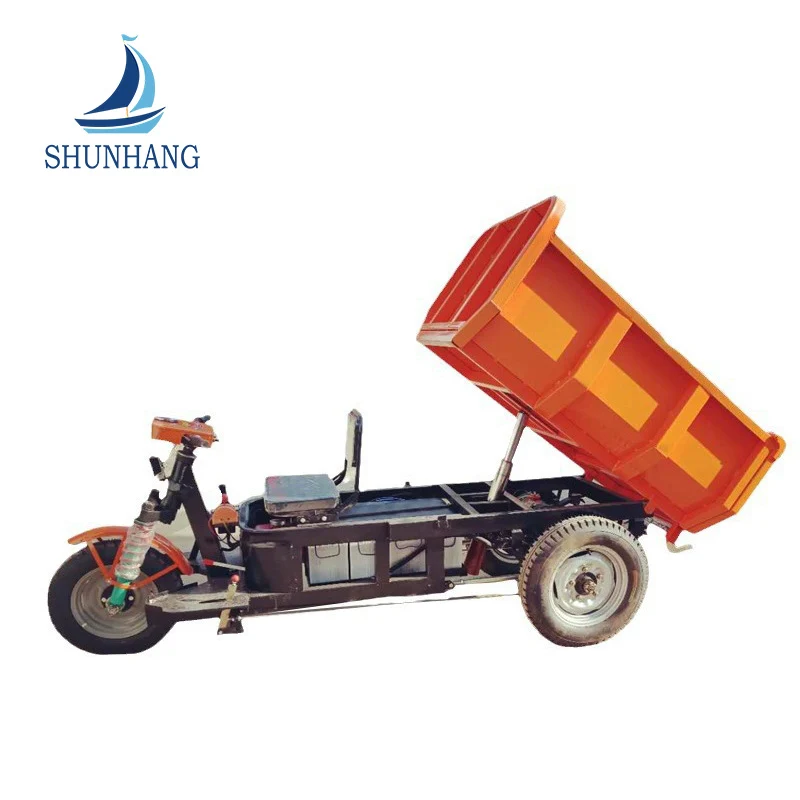

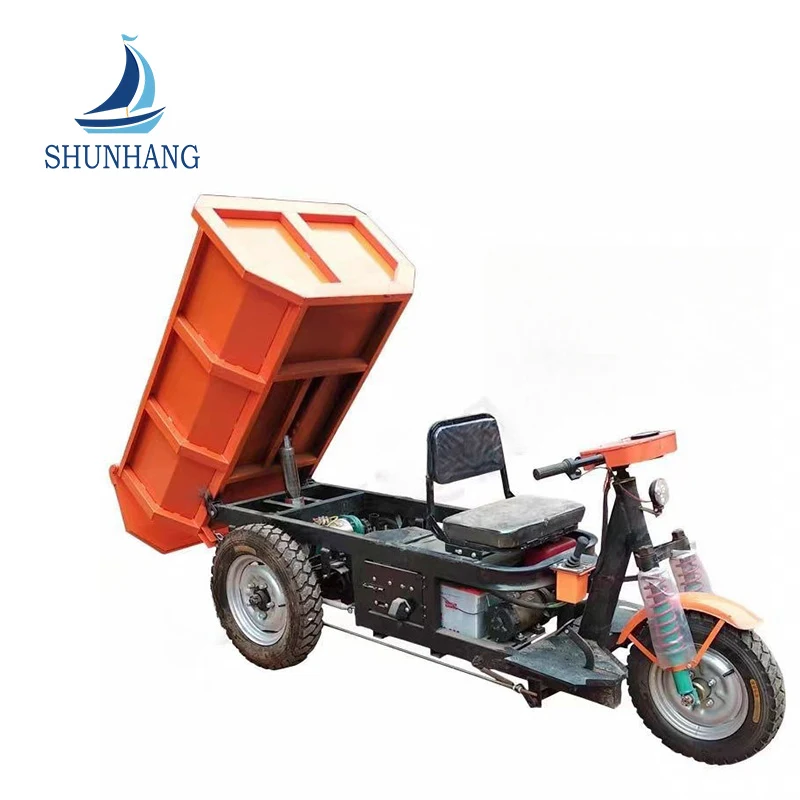

The load bearing 1.5 tons 72v battery engineering tricycle is equipped with a durable and reliable structure, featuring super stability and durability.
The durable load bearing 1.5 tons 72v battery engineering tricycle is constructed with thickened steel plates for the cargo box, ensuring a long service life and the ability to withstand harsh transportation environments. As a low price load bearing 1.5 tons 72v battery engineering tricycle, it has a long-lasting battery life: 12v x 6 = 72v. With one charge, it can provide a driving range of up to 90km, and can be fully charged within 7-9 hours.
It is equipped with reliable safety features. The three-wheeler is equipped with front drum and rear disc braking systems to ensure safe operation on various terrains. It can also handle a capacity greater than or equal to 25 degrees, providing stable inclination. It has advantages such as durability, economy, environmental friendliness, etc. for transportation in mines, construction, agriculture, etc.
The quality load bearing 1.5 tons 72v battery engineering tricycle. It is compact, agile, sturdy and durable, and has strong climbing ability. It is suitable for transporting building materials such as sand, stones, bricks and cement in construction sites; short-distance transportation of containers and equipment in logistics and warehousing; batch transportation of grains, fertilizers and livestock feed in agricultural production; and loading of metal waste and waste paper in waste recycling. It has a wide range of applications.
The load bearing 1.5 tons 72v battery engineering tricycle can handle various road conditions and is convenient and effortless for climbing and transporting. It has zero exhaust emissions and low noise, making it environmentally friendly.
|
Self-weight |
700kg |
|
|
External dimensions |
2.90m*1.0m*1.35m |
L*W*H |
|
Cargo box size |
1.600M*1.0m*500M |
L*W*H /Steel plate thickness 3mm |
|
Maximum load capacity |
2000kg |
|
|
The workbench is high above the ground |
1250mm |
|
|
Wheelbase |
2050mm |
|
|
Minimum height from the ground |
200mm |
|
|
Track length |
1000mm |
|
|
Lead-acid maintenance-free battery |
Six 12v110a maintenance-free batteries |
72v |
|

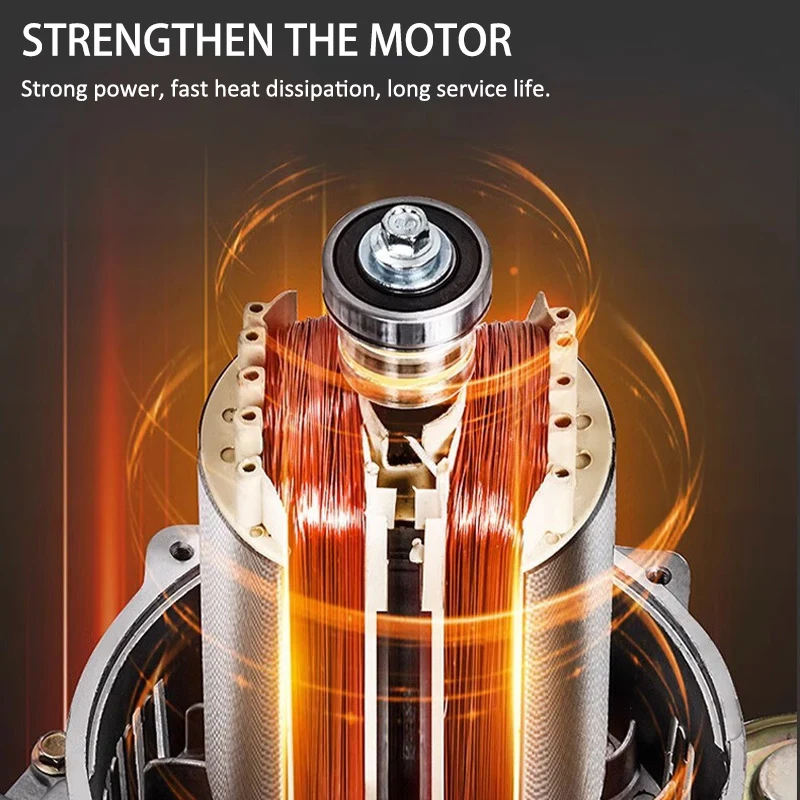

Ac brushless motor |
72V3000W |
3000R |
|
Motor controller |
72V3000W |
|
|
Rear axle |
3t |
Shift gears between high and low speeds |
|
Rear tire |
500-14 |
|
|
Front tire |
500-12 |
|
|
Braking mode |
Hydraulic braking |
|
|
Transmission mode |
Direct connection of the motor |
|
|
Lifting device |
ZLC type DC series-excited motor DYZ-E6 hydraulic power unit Hydraulic cylinder ø80 |
|
|
Shock absorption system |
Nine reinforced leaf springs |
|
|
Slope of ascent |
The wind belt is equipped with a secondary frame for double shock absorption |
|
|
Speed regulation mode |
Pedal accelerator |
|
|
Directional device |
Disc type steering gear |
|
As a load bearing 1.5 tons 72v battery engineering tricycle suppliers, our company has professional mechanical engineers who can provide professional quality services and technical guidance services to different customer groups. While promoting the application of green energy in the engineering field, we are also constantly improving the battery performance and designing lighter frames to offer better services.
